Biktrix Juggernaut Classic Duo Step-Thru

Biktrix Juggernaut Classic Duo Step-Thru

$2,299.00 USD
$2,699.00 USD $2,299.00 USD
Sale Sold out
Shipping calculated at checkout.

The Duo Series Ebikes For Everyone

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

The Next Step In Performance.

Looking for a little more power, but don't want to break the bank? Meet The Classic Duo. With a 750W mid-drive motor, The Classic delivers a considerable performance boost without sacrificing affordability. Use the bikes gears to your advantage and tackle tough terrain with ease. Your adventure awaits.

All The Good Stuff, And More.

  • Mid-Drive Motor
  • LCD Display
  • Thumb Throttle & Control Pad
  • Suspension Fork
  • Drivetrain
  • Hydraulic Disc Brakes
  • Integrated Front Light
  • Optional Range Extender
  • Rack & Fenders
View full details

Distance Range

PAS 1
Pedal-Assist Lv.1
81mi
PAS 2
Pedal-Assist Lv.2
64mi
PAS 3
Pedal-Assist Lv.3
43mi
PAS 4
Pedal-Assist Lv.4
39mi
PAS 5
Pedal-Assist Lv.5
36mi
THRL
Throttle Only
31mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 Aluminum

Front Hub
135mm 36h

Seat Post
27.2mm

Fork
Rst Guide W/75mm Travel, Lockout And Preload

Front Axle
5mm Qr

Seat Post Clamp
Qr

Headset
Threadless 1-18/ 1-1/2 Tapered

Rear Hub
170mm 36h

Motor
750w Bafang Bbs02 Mid-Drive

Shifter Rear
Shimano Alivio 9 Speed Trigger

Rear Axle
5mm Qr

Battery Sizes
Total Capacity Of 52v 36.5ah 1898wh:
52v 17.5ah 910wh (Internal Battery) +
Up To 52v 19ah 988wh (External Range Extender Battery)

Rear Derailleur
Shimano 9 Speed

Rims
26x4, 27.5x3, 24x4

Display
Dpc-18

Cassette
9 Speed 12-36t Cassette

Tire Sizes
26x4, 27.5x3, 24x4

Lights
Headlight, Taillight

Chain
Kmc 9 Speed

Handlebar
31.8mm Clamp, 700mm Wide, 80mm Rise

Assist Type
Cadence

Crank Set
170mm Arms 44t Chainring

Stem
Promax 90mm

Assist Levels
1-5

Bottom Bracket
Bafang Square Taper

Grips
Comfort Grips

Throttle
Thumb Throttle

Brakes
Tektro E350 Dual Piston W/ 180mm Rotors

Saddle
Wide Saddle

Other
Front And Rear Fender, Rear Rack, Kickstand

Brake Levers
Tektro Adjustable W/ Integrated Brake Cutoffs

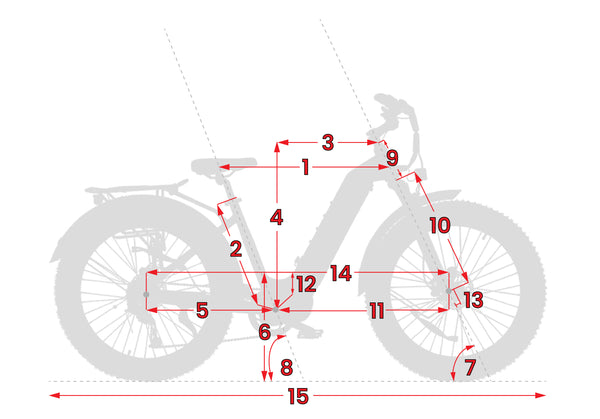

Size & Fittings



M - 17"

1
Effective Top Tube Length
 640mm 25.2in
2
Seat Tube Length (Classic Bike Size)
 420mm 16.5in
3
Reach
 460mm 18.1in
4
Stack
 660mm 26in
5
Chainstay Length
 520mm 20.5in
6
Standover Height
 400mm 15.7in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 140 mm 5.5 in
10
Fork Length
 530mm 20.9in
11
Front Center
 720mm 28.3in
12
BB (Bottom Bracket) Drop
 60mm 2.4in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1230mm 48.4in
15
Total Length
 1980mm 78in
16
Max Seat Height
 950mm 37.4in
17
Min Seat Height
 770mm 30.3in
18
Handlebar Height
 1090mm 42.9in
19
Weight (Without Battery)
 31.3kg 69lb



 L - 19"

1
Effective Top Tube Length
 640mm 25.2in
2
Seat Tube Length (Classic Bike Size)
 470mm 18.5in
3
Reach
 510mm 20.1in
4
Stack
 600mm 23.6in
5
Chainstay Length
 520mm 20.5in
6
Standover Height
 420mm 16.5in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 140 mm 5.5 in
10
Fork Length
 530mm 20.9in
11
Front Center
 760mm 29.9in
12
BB (Bottom Bracket) Drop
 60mm 2.4in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1280mm 50.4in
15
Total Length
 2000mm 78.7in
16
Max Seat Height
 1010mm 39.8in
17
Min Seat Height
 840mm 33.1in
18
Handlebar Height
 1140mm 44.9in
19
Weight (Without Battery)
 32.5kg 71.7lb
