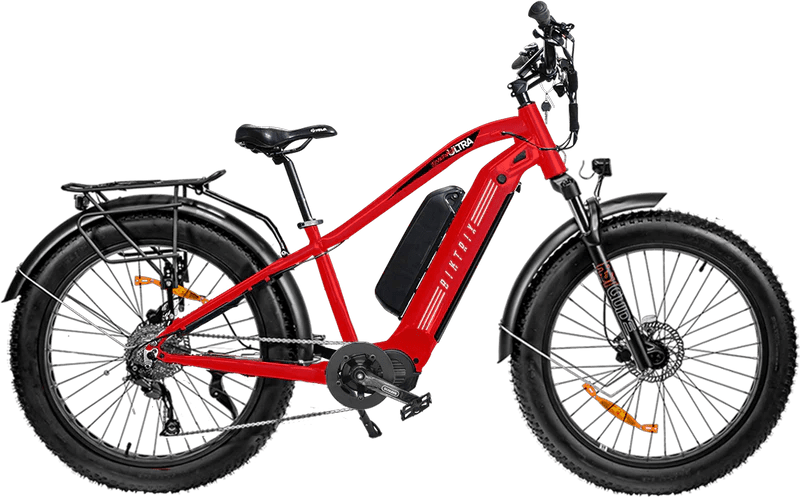

Biktrix Juggernaut Ultra Duo 2 Step-Over

Biktrix Juggernaut Ultra Duo 2 Step-Over

$4,229.00 USD
$6,029.00 USD $4,229.00 USD
Sale Sold out
Shipping calculated at checkout.

The Duo Series Ebikes For Everyone

The Juggernaut Duo Series is all about flexibility. Hub-drive or mid-drive, step-over or step-thru, single battery or dual battery, entry-level or high-end. No matter your needs, there's probably a Duo for you.

Welcome To The Big Leagues

The Ultra Duo sits at the top of the Duo range, so naturally, it boasts one of the most powerful motor systems available today. The Bafang Ultra M620 mid-drive motor is loaded with 1500W of peak power and 160Nm of torque. Pair that with the 11-speed drivetrain, and you'll be nearly unstoppable.

ULTRA POWERFUL. ULTRA LOADED

  • Mid-Drive Motor
  • LCD Display
  • Thumb Throttle & Control Pad
  • Suspension Fork
  • Drivetrain
  • Hydraulic Disc Brakes
  • Integrated Front Light
  • Optional Range Extender
  • Rack & Fenders
View full details

Distance Range

PAS 1
Pedal-Assist Lv.1
52mi
PAS 2
Pedal-Assist Lv.2
43mi
PAS 3
Pedal-Assist Lv.3
38mi
PAS 4
Pedal-Assist Lv.4
35mi
PAS 5
Pedal-Assist Lv.5
31mi
THRL
Throttle Only
22mi
**Please note that information regarding the expected range on a single charge on one of our e-bikes is an estimate, not a guarantee. There are many factors that contribute to the actual, real-world range for an e-bike battery such as the age of the battery, temperature, level of assist, speed, payload, and terrain. Depending on these various conditions, it is possible to get less than the expected minimum range or greater than the expected maximum range.

Technical Specifications

Frame
6061 Aluminum

Front Hub
135mm 36h

Seat Post
28.6mm

Fork
Rst Guide W/75mm Travel, Lockout And Preload

Front Axle
5mm Qr

Seat Post Clamp
Qr

Headset
Threadless 1-1/8 1-1/2 Tapered

Rear Hub
197mm 36h

Motor
Bafang Ultra M620

Shifter Rear
Shimano Alivio 9 Speed Trigger Shifter

Rear Axle
12mm Thru

Battery Sizes
Total Capacity Of 52v 36.5ah 1898wh:
52v 17.5ah 910wh (Internal Battery) +
Up To 52v 19ah 988wh (External Range Extender Battery)

Rear Derailleur
Shimano Alivio 9 Speed

Rims
Black 36h 26" W/ Round Cutouts

Display
Dpc-18

Cassette
9 Speed 12-36t Cassette

Tire Sizes
26x4", 27.5x3"

Lights
Integrated Headlight, Integrated Taillight

Chain
Kmc E9s

Handlebar
700mm Wide, 50mm Rise W/ 31.8mm Clamp

Assist Type
Torque + Cadence

Crank Set
170mm Arms 44t Chainring

Stem
90mm Solid

Assist Levels
1-5

Bottom Bracket
Bafang Ultra Isis

Grips
Slide-On Comfort Grips

Throttle
Thumb Throttle

Brakes
Tektro E350 Dual-Piston Brakes W/ 160mm Rotors

Saddle
Wide Saddle

Other
Front And Rear Fenders, Rear Rack, Kickstand

Brake Levers
Tektro Adjustable W/Brake Cutoffs

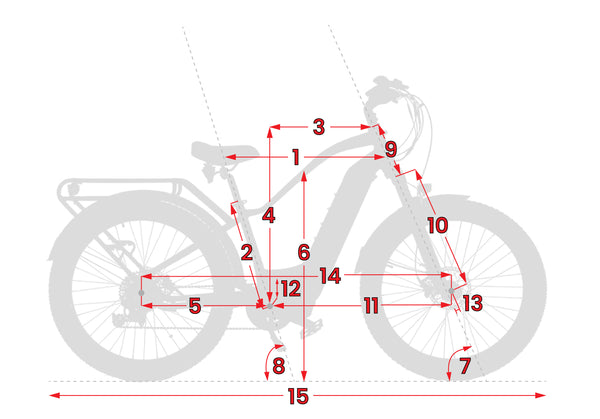

Size & Fittings



M - 17"

1
Effective Top Tube Length
 570mm 22.4in
2
Seat Tube Length (Classic Bike Size)
 420mm 16.5in
3
Reach
 460mm 18.1in
4
Stack
 560mm 22in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 690mm 27.2in
7
Head Angle
 71° -
8
Seat Angle
 73.5° -
9
Head Tube Length
 190 mm 7.5 in
10
Fork Length
 530mm 20.9in
11
Front Center
 700mm 27.6in
12
BB (Bottom Bracket) Drop
 70mm 2.8in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1220mm 48in
15
Total Length
 2000mm 78.7in
16
Max Seat Height
 990mm 39in
17
Min Seat Height
 830mm 32.7in
18
Handlebar Height
 1120mm 44.1in
19
Weight (Without Battery)
 33.1kg 73lb



L - 19"

1
Effective Top Tube Length
 610mm 24in
2
Seat Tube Length (Classic Bike Size)
 470mm 18.5in
3
Reach
 480mm 18.9in
4
Stack
 570mm 22.4in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 730mm 28.7in
7
Head Angle
 71° -
8
Seat Angle
 73.5° -
9
Head Tube Length
 190 mm 7.5 in
10
Fork Length
 530mm 20.9in
11
Front Center
 710mm 28in
12
BB (Bottom Bracket) Drop
 70mm 2.8in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1240mm 48.8in
15
Total Length
 2020mm 79.5in
16
Max Seat Height
 1040mm 40.9in
17
Min Seat Height
 880mm 34.6in
18
Handlebar Height
 1140mm 44.9in
19
Weight (Without Battery)
 34kg 75lb



XL - 21"

1
Effective Top Tube Length
 630mm 24.8in
2
Seat Tube Length (Classic Bike Size)
 520mm 20.5in
3
Reach
 500mm 19.7in
4
Stack
 580mm 22.8in
5
Chainstay Length
 510mm 20.1in
6
Standover Height
 760mm 29.9in
7
Head Angle
 71° -
8
Seat Angle
 73.5° -
9
Head Tube Length
 190 mm 7.5 in
10
Fork Length
 530mm 20.9in
11
Front Center
 720mm 28.3in
12
BB (Bottom Bracket) Drop
 70mm 2.8in
13
Fork Offset
 35mm 1.4in
14
Wheelbase
 1260mm 49.6in
15
Total Length
 2040mm 80.3in
16
Max Seat Height
 1080mm 42.5in
17
Min Seat Height
 920mm 36.2in
18
Handlebar Height
 1150mm 45.3in
19
Weight (Without Battery)
 34.4kg 75.8lb
