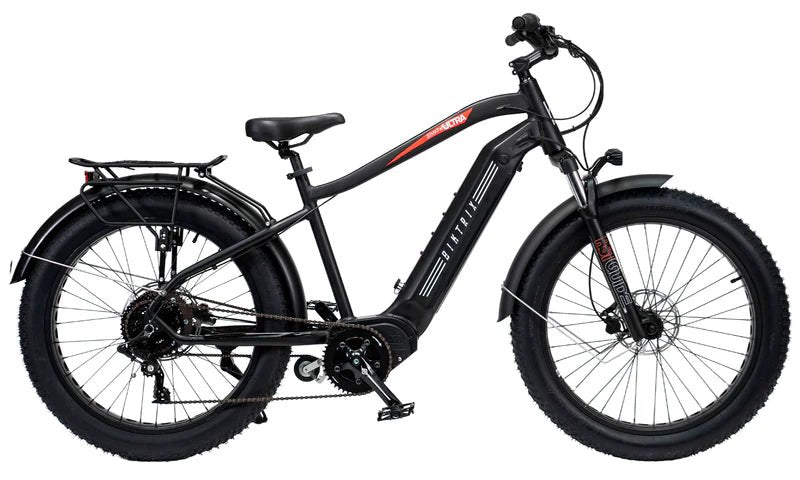

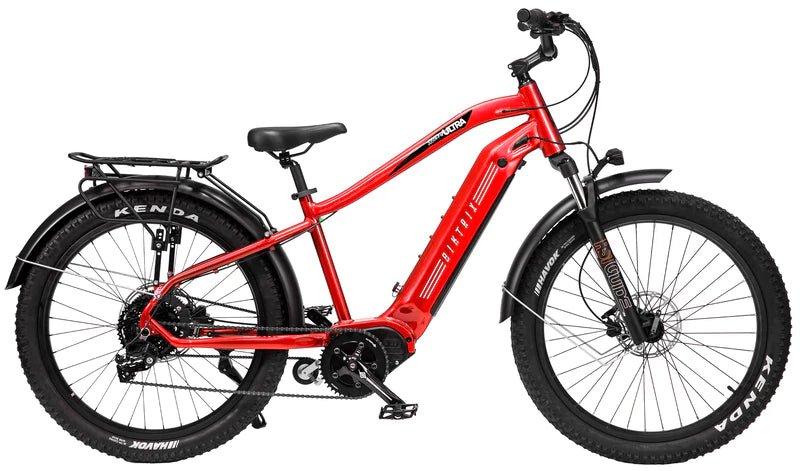

Biktrix Juggernaut XD Duo

Biktrix Juggernaut XD Duo

$5,599.00 USD
$5,999.00 USD $5,599.00 USD
Sale Sold out
Shipping calculated at checkout.

Unmatched. Power. Reliable.

Getting plenty of power to the rear wheel is exciting, but has always come at the risk of ongoing costs in replacement parts, and time lost riding. Many casual to moderate riders will not ride hard enough to cause such issues. But for those who want to push the limits, a more robust solution was needed to build the dream e-bike machine, with extreme endurance.

Designed And Built In Canada

The XD Drive system was developed in Saskatoon, Canada, by a team of e-bike enthusiasts with a shared passion for better solutions to transportation. The global pandemic conditions forced them to improvise, adapt, and overcome, tackling the bike parts shortages, chip shortages, shipping shortages, and forces of nature simultaneously throughout development.

The resulting product and its manufacturing approaches are primed for navigating such challenges with agility, and competitive in-house solutions.

Performance. Fully Loaded.

  • Mid-Drive Motor
  • Heavy Duty Dual Drive Chain
  • Twist Throttle
  • 220mm Rear Brake Rotor
  • SRAM NX Bike-Side Drivetrain
  • Armageddon Headlight


View full details

Distance Range

N/A

Technical Specifications

Frame
6061 Aluminum

Front Hub
135mm 36h (150mm 36h With Wren Fork)

Seat Post
28.6mm

Fork
Rst Guide W/ Lockout, Preload, 80mm Travel

Front Axle
5mm Qr (15mm Thru Axle With Wren Fork)

Seat Post Clamp
Quick-Release

Headset
Threadless 1-1/8 1-1/2 Tapered

Rear Hub
190mm 36h Hub / 197mm Dropouts

Motor
Biktrix Mid-Drive Motor

Shifter Rear
Sram Nx 11 Speed Trigger Shifter

Rear Axle
12mm Thru Axle

Battery Sizes
52v 17.5ah 910wh Hidden Battery

Rear Derailleur
Sram Nx 11 Speed

Rims
26x4 Black W/ Round Cutouts, 27.5x3 Solid Black

Display
Ds104

Cassette
11 Speed Sram 11-42t Cassette

Tire Sizes
26x4, 27.5x3

Lights
Armageddon Headlight (All), Rear Reflector (Commuter Package)

Chain
Kmc X11

Handlebar
780mm Wide, 25mm Rise W/31.8mm Clamp (Adventure Package) / 700mm Wide, 80mm Rise W/31.8mm Clamp (Commuter Package)

Assist Type
Cadence

Crank Set
Short Crank Arms

Stem
55mm (Adventure Package) / 90mm (Commuter Package)

Assist Levels
1-5

Bottom Bracket
High Strength Stainless Steel Square Tapered

Grips
Mtb Grips

Throttle
Low Profile Rh Twist Throttle

Brakes
Tektro Dual Piston Brakes, 220mm Rear Rotor, 203mm
Front Rotor
Saddle

Nebula Mtb Saddle (Adventure Package) / Wide Comfort Seat (Commuter Package)

Other
Kickstand (All), Rear Rack And Fenders (Commuter Package)

Brake Levers
Tektro Adjustable With Integrated Motor Cutoff

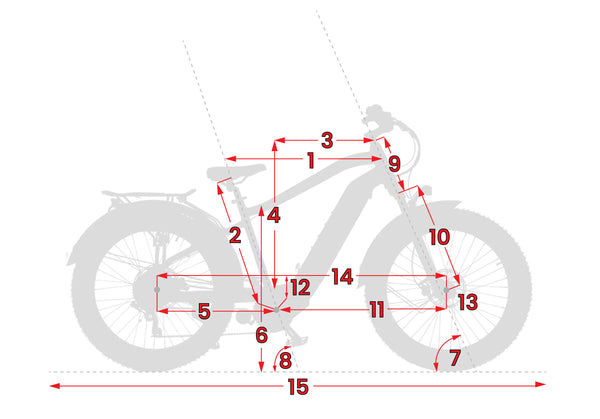

Size & Fittings



M - 17"

1
Effective Top Tube Length
 620mm 24.4in
2
Seat Tube Length (Classic Bike Size)
 430mm 16.9in
3
Reach
 460mm 18.1in
4
Stack
 630mm 24.8in
5
Chainstay Length
 520mm 20.5in
6
Standover Height
 730mm 28.7in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 200 mm 7.9 in
10
Fork Length
 530mm 20.9in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 80mm 3.1in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1320mm 52in
15
Total Length
 2040mm 80.3in
16
Max Seat Height
 970mm 38.2in
17
Min Seat Height
 820mm 32.3in
18
Handlebar Height
 1120mm 44.1in
19
Weight (Without Battery)
 30.6kg 67.5lb



L - 19"

1
Effective Top Tube Length
 620mm 24.4in
2
Seat Tube Length (Classic Bike Size)
 470mm 18.5in
3
Reach
 480mm 18.9in
4
Stack
 670mm 26.4in
5
Chainstay Length
 550mm 21.7in
6
Standover Height
 750mm 29.5in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 200 mm 7.9 in
10
Fork Length
 530mm 20.9in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 90mm 3.5in
13
Fork Offset
 40mm 1.6in
14
Wheelbase
 1330mm 52.4in
15
Total Length
 2040mm 80.3in
16
Max Seat Height
 1010mm 39.8in
17
Min Seat Height
 860mm 33.9in
18
Handlebar Height
 1140mm 44.9in
19
Weight (Without Battery)
 31.2kg 68.8lb



XL - 21"

1
Effective Top Tube Length
 630mm 24.8in
2
Seat Tube Length (Classic Bike Size)
 520mm 20.5in
3
Reach
 500mm 19.7in
4
Stack
 630mm 24.8in
5
Chainstay Length
 520mm 20.5in
6
Standover Height
 760mm 29.9in
7
Head Angle
 68° -
8
Seat Angle
 71° -
9
Head Tube Length
 200 mm 7.9 in
10
Fork Length
 530mm 20.9in
11
Front Center
 790mm 31.1in
12
BB (Bottom Bracket) Drop
 80mm 3.1in
13
Fork Offset
 30mm 1.2in
14
Wheelbase
 1320mm 52in
15
Total Length
 2040mm 80.3in
16
Max Seat Height
 1080mm 42.5in
17
Min Seat Height
 920mm 36.2in
18
Handlebar Height
 1150mm 45.3in
19
Weight (Without Battery)
 30.6kg 67.5lb
