Biktrix Juggernaut XD Eagle

Biktrix Juggernaut XD Eagle

$5,999.00 USD
$5,999.00 USD
Sale Sold out
Shipping calculated at checkout.

Designed In Canada. Manufactured In The USA.

The North American-made Juggernaut Eagle 2 is a high-performance electric mountain bike built for serious riders. Endless color options and multiple wheel sizes make it uniquely customizable, and the over 1000 Watts of motor power packs a major punch. To paraphrase a well-known song by a classic American band... "If It Had A Set Of Wings, Man, I Know It Could Fly".

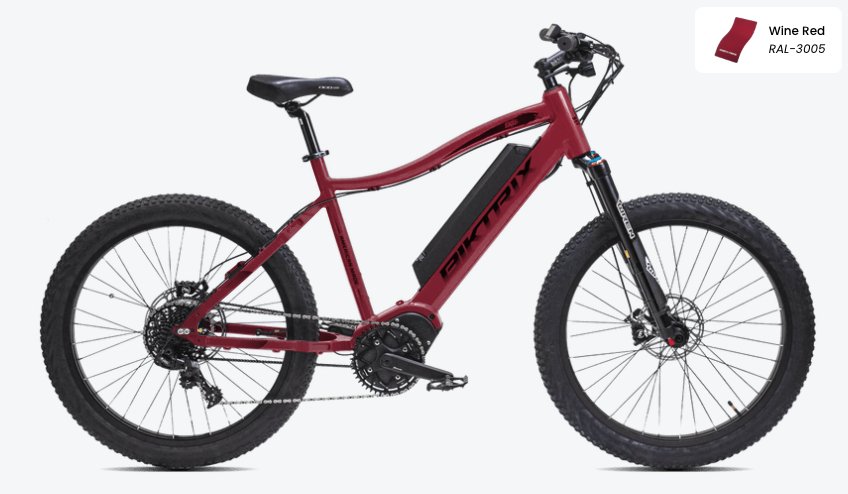

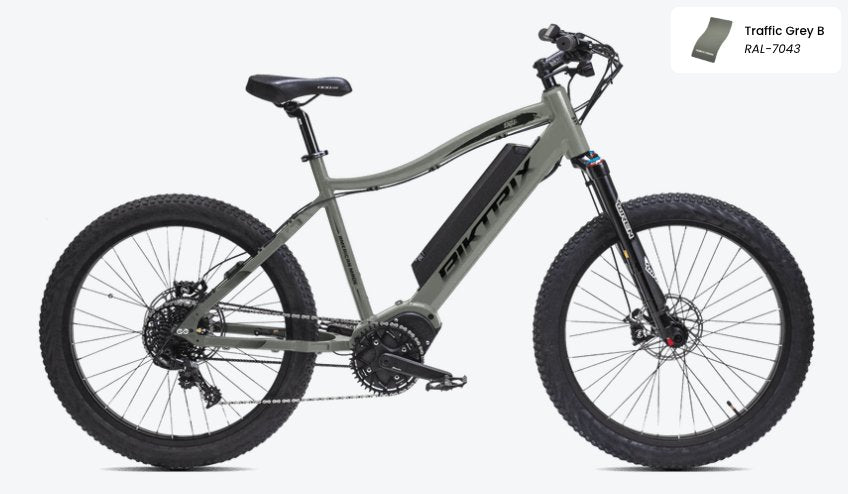

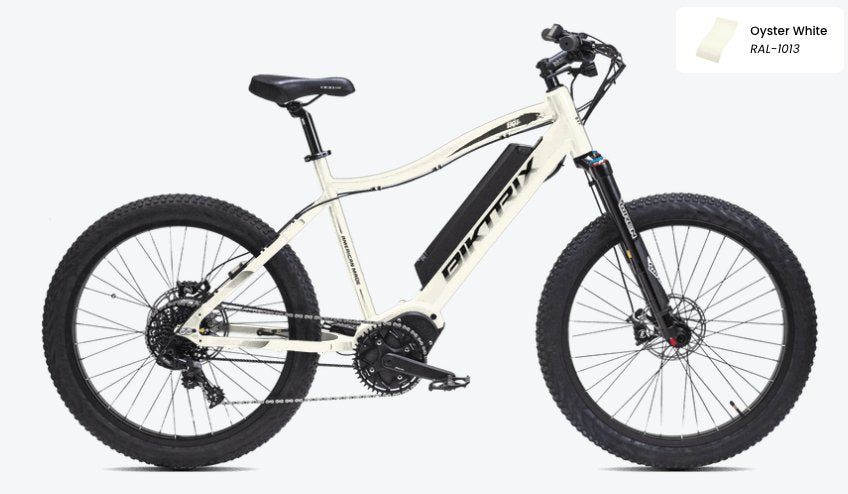

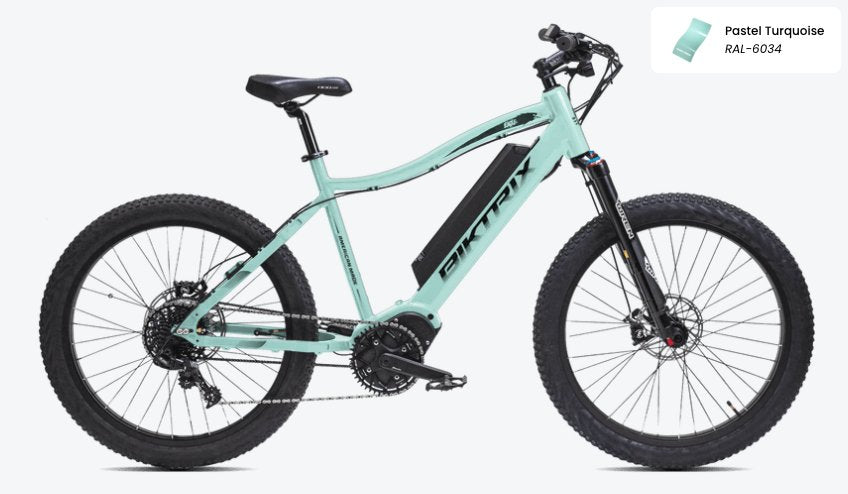

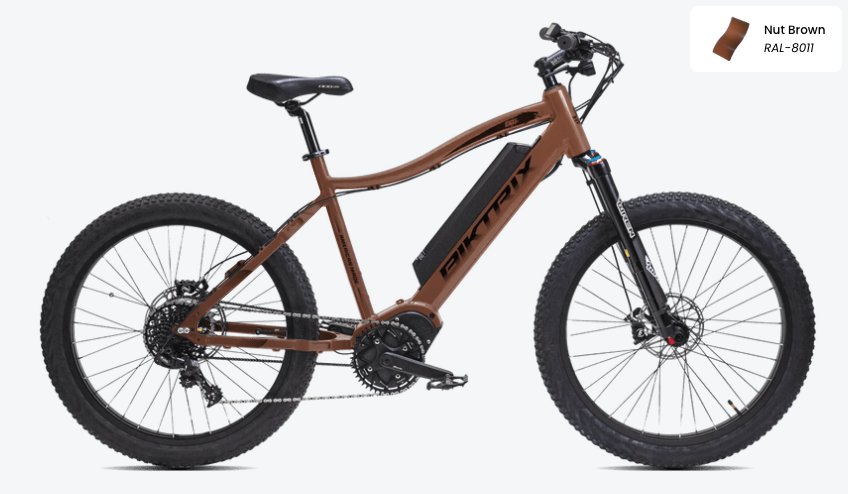

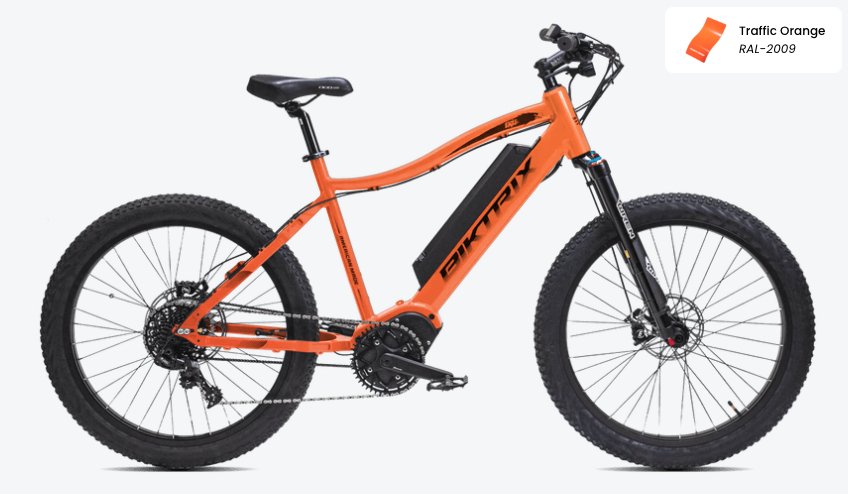

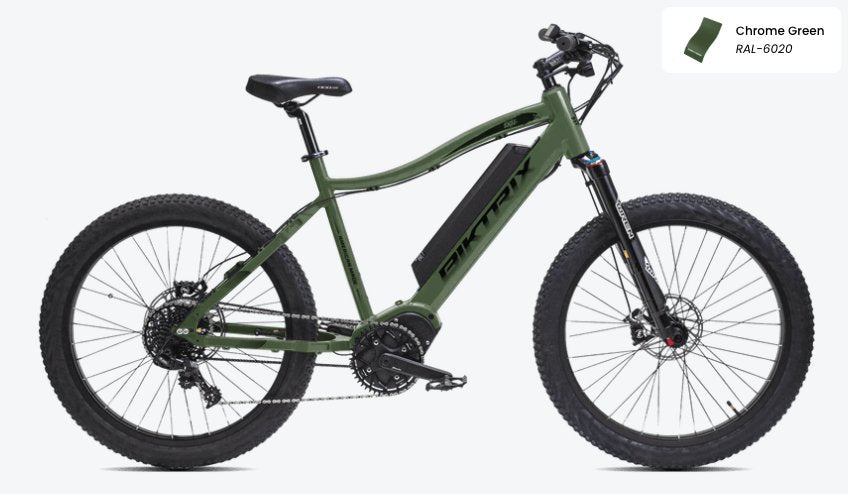

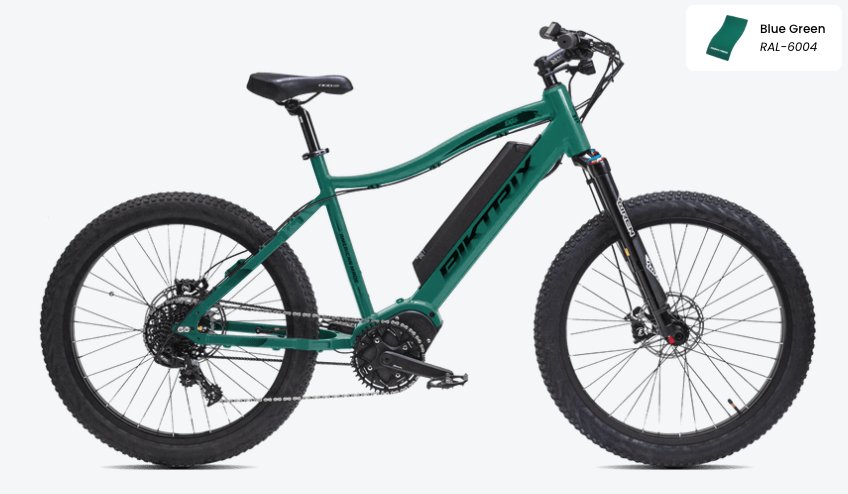

Customize Your Ride The Way You Want It.

A full spectrum of color options and multiple wheel sizes make the Juggernaut Ultra Eagle 2 uniquely customizable to each rider.

Bells & Whistles? You Bet.

  • Made in USA T6 Aluminum Frame
  • SRAM NX11-Speed Drivetrain
  • Mid-Drive Motor
  • Wren Inverted Front Suspension Fork
  • Multiple Tire Size Options
  • Removeable Battery
  • Magura MT5e Brakes
  • LCD Display
  • Armageddon Headlight



View full details

Distance Range

N/A

Technical Specifications

Frame
Made In Usa 6061 Aluminum

Front Hub
150mm 36h/150mm 32h

Seat Post
31.6mm

Fork
Rst Renegade Coil Spring W/100mm Travel, Lockout & Preload

Front Axle
15mm Thru Axle

Seat Post Clamp
Qr

Headset
Threadless 1-1/2 1-1/8 Tapered

Rear Hub
197mm 36h / 197 32h

Motor
Biktrix Xd Dual Drive Motor

Shifter Rear
Sram Nx 11 Speed Trigger Shifter

Rear Axle
12mm Thru Axle

Battery Sizes
48v 21ah 1008wh, 52v 17ah 910wh, 48v 25ah 1200wh

Rear Derailleur
Sram Nx 11 Speed

Rims
27.5x3 36h, 26x4 32h, 26x4.8 32h

Display
Ds104

Cassette
Sram 11-42t

Tire Sizes
27.5x3", 26x4", 26x4.8"

Lights
Biktrix Armageddon 2000 Lumen Headlight, Battery Taillight

Chain
Kmc X11e

Handlebar
31.8mm Clamp, 800mm Length, 30mm Rise

Assist Type
Cadence

Crank Set
150mm Short Crank Arms, 46t Chainring (Xd)

Stem
31.8mm Clamp 100mm Fixed Stem

Assist Levels
0-5

Bottom Bracket
High Strength Stainless Steel Square Tapered

Grips
Mtb Grips

Throttle
Twist Throttle

Brakes
Tektro Dorado E730 Quad Piston Brakes W/ 203mm Front + 220mm Rear

Saddle
Dco Classic Mtb Saddle

Brake Levers
Tektro Dorado 4-Finger W/Adjustable Reach And Brake Cutoffs

Size & Fittings

L - 18"

1
Effective Top Tube Length
 600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
 480mm 18.9in
3
Reach
 480mm 18.9in
4
Stack
 620mm 24.4in
5
Chainstay Length
 530mm 20.9in
6
Standover Height
 720mm 28.3in
7
Head Angle
 66° -
8
Seat Angle
 71° -
9
Head Tube Length
 180 mm 7.1 in
10
Fork Length
 510mm 20.1in
11
Front Center
 760mm 29.9in
12
BB (Bottom Bracket) Drop
 40mm 1.6in
13
Fork Offset
 20mm 0.8in
14
Wheelbase
 1290mm 50.8in
15
Total Length
 2050mm 80.7in
16
Max Seat Height
 1130mm 44.5in
17
Min Seat Height
 890mm 35in
18
Handlebar Height
 1100mm 43.3in
19
Weight (Without Battery)
 21.6kg 47.6lb



XL - 21"

1
Effective Top Tube Length
 600mm 23.6in
2
Seat Tube Length (Classic Bike Size)
 535mm 21.1in
3
Reach
 480mm 18.9in
4
Stack
 620mm 24.4in
5
Chainstay Length
 530mm 20.9in
6
Standover Height
 770mm 30.3in
7
Head Angle
 66° -
8
Seat Angle
 71° -
9
Head Tube Length
 180 mm 7.1 in
10
Fork Length
 510mm 20.1in
11
Front Center
 760mm 29.9in
12
BB (Bottom Bracket) Drop
 40mm 1.6in
13
Fork Offset
 20mm 0.8in
14
Wheelbase
 1290mm 50.8in
15
Total Length
 2050mm 80.7in
16
Max Seat Height
 1190mm 46.9in
17
Min Seat Height
 950mm 37.4in
18
Handlebar Height
 1120mm 44.1in
19
Weight (Without Battery)
 21.8kg 48.1lb
