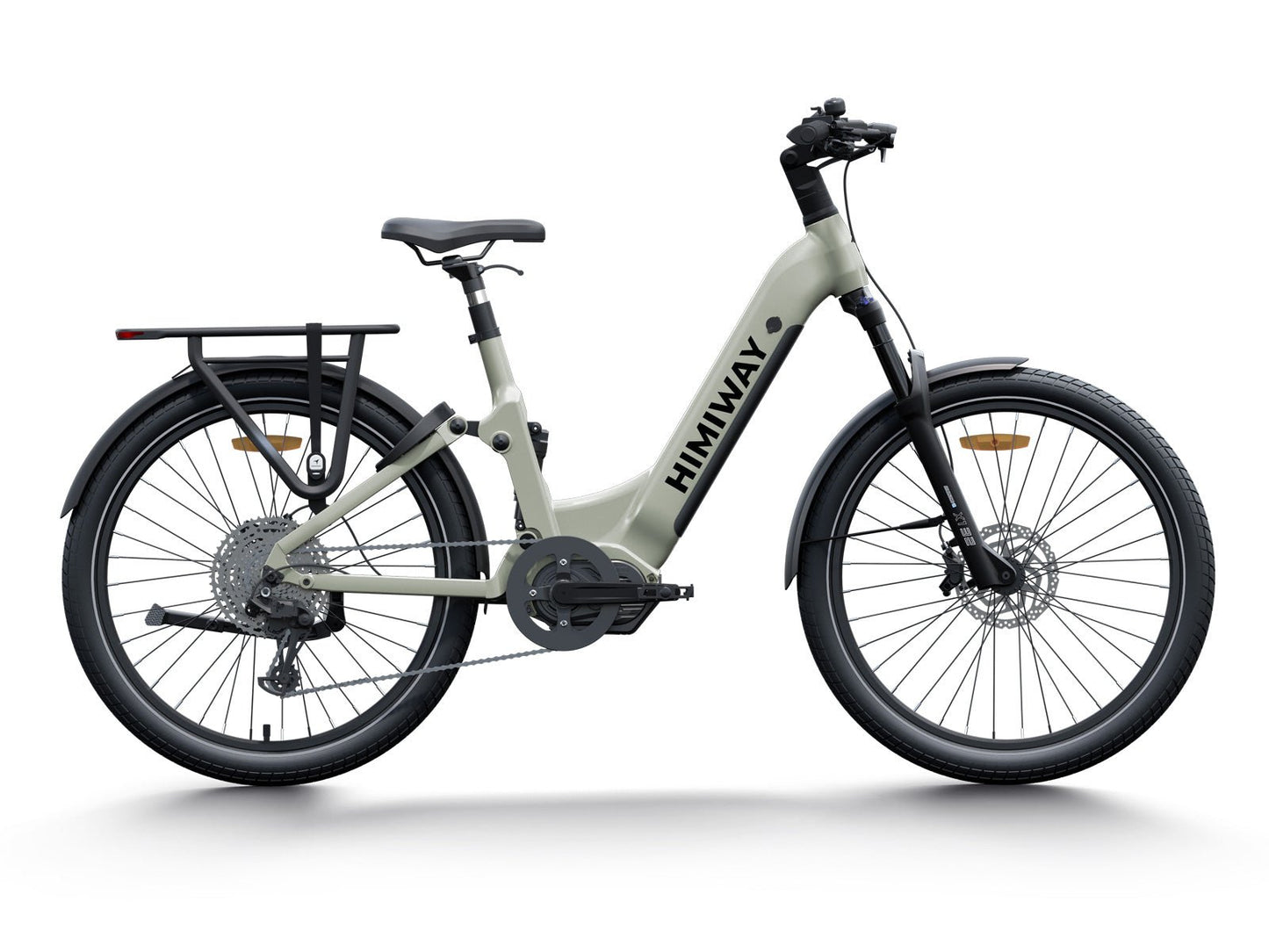

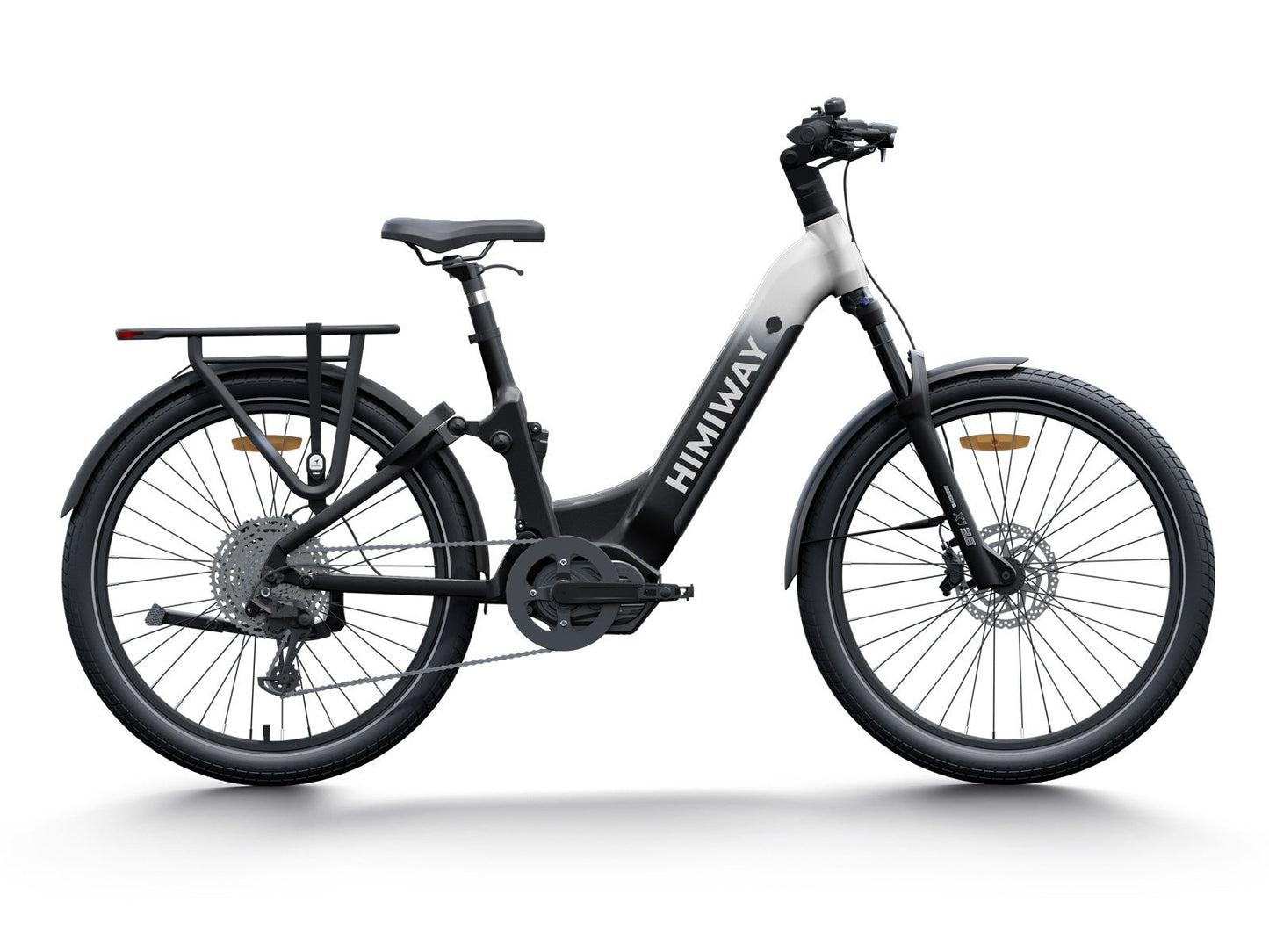

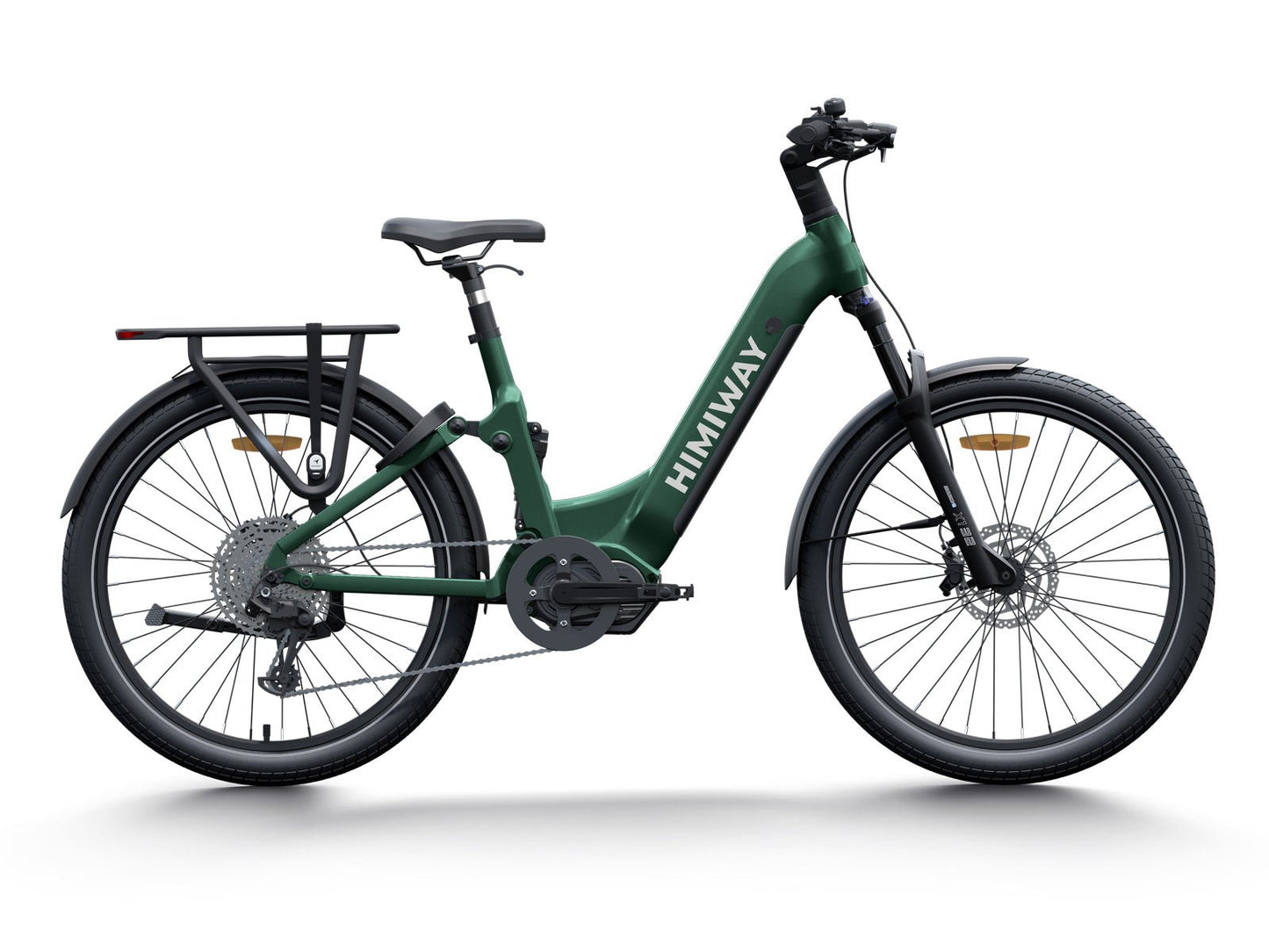

Himiway A7 Pro
Himiway A7 Pro
Share
The Best Mode Commuter
The Himiway A7 Pro is an urban electric commuter bike with 4-bar Linkage Suspension, 500w Mid-Drive Motor, Hydraulic Brakes, 9 Speed Shimano Derailleur, 720 Wh Battery with 60 Miles Per Charge max.
Collapsible content
Size Chart
-
A – total length76
-
B – handlebar height44
-
C – handlebar length27.2
-
D – wheelbase48
-
E – wheel diameter28.1
-
F – minimum seat height24
-
G – maximum seat height28.7
-
H – chain stay length19.3
-
I – frame stack19.2
-
K – effective top tube length24
-
N – standover height21.6
Overview
4-bar Linkage
Suspension
500 W
Mid-Drive Motor
Torque
Sensor
Hydraulic
Brakes
9 Speed
Shimano Derailleur
720 Wh
Samsung/LG Battery
50 Miles
Per Charge (maximum) *1
27.5"x 2.4 "
Commuter Tires
1 - The range can be affected by several factors like rider weight, incline, and pedal-assist levels, etc.
Specifications
Frame
6061 Aluminum frame
Headset
TOPYCWZ-5662-01 52*52*39.8
Fork
SR-SUNTOUR X1-BOOST 120mm travel
Shock
DNM AO-06 /165*38mm BK
Front wheel
Rim: DM-350 27.5""*13G*36H SV | Spoke: 13G 263L STAINLESS(304M) | Hub: DM41SB-B15 13G*36H*110
Rear wheel
Rim: DM-350 27.5"*13G*36H SV | Spoke: 13G 265L STAINLESS(304M) | Hub: M102R-148 12*13*36*148
Tires
SCHWALBE SUPER MOTO-X 27.5*2.4
Battery
Samsung/LG 48V 15Ah
Motor

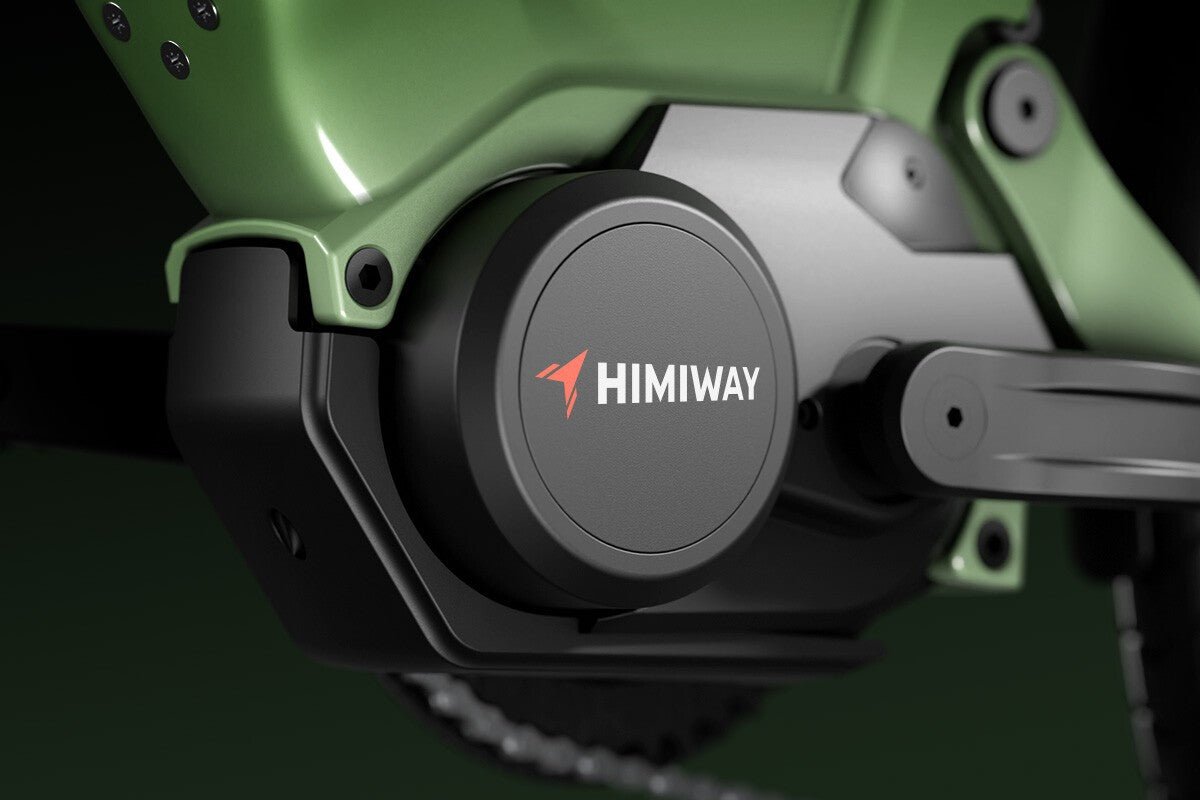

ANANDA M100 48V-500W mid-drive motor
Display
BIGSTONE M300C-TFT
Throttle
Thumb throttle
Sensors
Torque sensor丨shifting sensor丨speed sensor丨brake sensor
Crankset
Crank arm: PROWHEEL A00C 170mm 44A-S2-CL41 BCD104 | Chain ring: PROWHEEL 44T 104BCD Narrow wide chainring
Cassette
Shimano CS-HG201-9 11-34T
Chain
KMC E9 120L
Groupset
Shimano M3100SGS ALIVO-9S
Front brake
Shimano MT200 hydraulic brake
Rear brake
Shimano MT200 hydraulic brake
Rotors
Shimano RT26 F:180mm R:180mm
Components
Stem
Promax Alloy ssabk
Handlebar
MTB-AL-325BT/Φ31.8*/W:680/6°
Seatpost
ESP-AD635 31.6*350mm | travel:100mm
Saddle
DDK 153MF
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Other
Range
35~50 miles
Controller
48V/22A
Charger
US standard 2.0 A smart charger
Rider height
5′3″ ~ 6′5″
Weight
77 lb.
Max. system weight
300 lb.
